Separation and Determination of Zirconium from Environmental Water Samples Using Extractant Impregnated Resin

Dipak J. Garole^1,2*, Sandesh R. Tetgure¹, Bharat C. Choudhary¹, Pramod P. Patil¹, Amulrao U. Borse¹ and Surendra Prasad^{3 1}Department of Chemical Sciences, North Maharashtra University, Jalgaon 425001, Maharashtra, India
²Department of Geology and Mining, Government of Maharashtra, Nagpur 440010, India
³Department of Biological and Chemical Sciences, School of Agriculture, Geography, Environment, Ocean and Natural Sciences, The University of the South Pacific, Suva, Fiji
^*Correspondence: Dipak J. Garole, Department of Chemical Sciences, North Maharashtra University, Jalgaon 425001, Maharashtra, India, Email:

Received: 05-Aug-2023, Manuscript No. ACE-23-22474; Editor assigned: 07-Aug-2023, Pre QC No. ACE-23-22474 (PQ); Reviewed: 21-Aug-2023, QC No. ACE-23-22474; Revised: 04-Mar-2024, Manuscript No. ACE-23-22474 (R); Published: 11-Mar-2024, DOI: 10.35248/2090-4568.24.14.332

Introduction

Zirconium (Zr) is one of the important elements because of its use in the field of ceramic and nuclear industries, dental materials, surgical appliances, explosive primers, filaments, etc. [1-3]. It has been used extensively in water moderated reactors due to its inherent properties like low neutron absorption crosssection, excellent corrosion resistance at moderately elevated temperatures, strength, ductility, and ease of fabrication [4]. In addition, it is an ideal material for nuclear power stations as it does not absorb neutrons [5,6]. Considering these potential uses of Zr, its determination and recovery are extremely important from an environmental perspective. However, direct determination of Zr is still challenging and the problem becomes more strengthened due to limitations of instrumental techniques and interference effects [7]. As a result, its selective separation and pre-concentration prior to analysis has been an important technique [8]. Various pre-concentration methods like solvent extraction [9,10], ion-exchange [11,12], ion imprinting polymers [13,14] and cloud point extraction [15,16] have been developed for its trace-level analysis. Liquid–liquid separation of Zr and hafnium from nitric liquor has also been used in order to obtain nuclear grade zirconium oxide using Tributyl Phosphate (TBP) as extractant [17]. Solvent extraction techniques using Methyl Isobutyl Ketone (MIBK) and TBP have also been extensively used in industrial separation and recovery of Zr [18,19]. However, these organic solvents have inherent limitations like solvents loss due to evaporation, environmentally non-benign, high aqueous solubility that forms an emulsion, disposal of spent liquid waste, as well as increasing interest in the user health has prompted us to develop an alternative eco-friendly and economical method for separation of the analyte Zr.

Solid Phase Extraction (SPE) method has been gaining attention of researchers as practical and environment friendly separation of many organic and inorganic analysts [20-22]. Few SPE based methods have also been developed for Zr separation from the aqueous media and its determination at trace and ultra-trace levels [23-29]. Therefore, there has been increased interest to develop different types of adsorbents having high affinity, rapid adsorption rate, reusability, and the maximum adsorption capacity for analytes including Zr [30,31]. SPE based methods, particularly the impregnated sorbents, offer combined advantageous features of both; liquid–liquid extraction and ion exchange resins [32]. The extractant impregnated sorbents are easy to prepare where polymeric matrix resins are impregnated with an extractant having strong affinity for the selective ions [33]. In our previous work, extractant impregnated sorbents have been found to be promising materials for pre-concentration and determination of rare earth elements like uranium and thorium as well as heavy metals like nickel [34-36]. These extractant impregnated sorbents possessed good mechanical stability, reusable up to 80 cycles, and were able to pre-concentrate ultratrace level of analytes of interest. Thus, to improve further sensitivity and reusability, the extractant Isonitroso-4-Methyl-2- Pentanone (IMP) was impregnated on Amberlite XAD-4 resin, characterized, and systematically investigated to devise the optimum conditions for the separation of Zr⁴⁺. Therefore, in continuation of our study, the present study reports a systematic investigation for the sorption behavior of Zr⁴⁺ by Extractant Impregnated Resin (EIR) using column and batch mode followed by its spectrophotometric determination in different samples.

Materials and Methods

Materials and instrumentation

A stock solution of 1.0 mg/mL Zr⁴⁺ was prepared by dissolving an appropriate quantity of Zirconyl Nitrate Monohydrate (ZrO (NO₃)₂.H₂O) (AR grade) purchased from Loba Chemie in slightly acidified Double Distilled Water (DDW). The working solution containing 20 μg/mL of Zr⁴⁺was prepared by appropriate dilution. Amberlite XAD-4 resin (20-60 mesh size, surface area 750 m²/g) was purchased from Supelco, Sigma Aldrich and cleaned by single washing sequentially with methanol, DDW, 1 M HNO₃, water, 1 M NaOH, and DDW (till pH comes to neutral) to remove impurities and dried well before use. Arsenazo III (AR grade) was obtained from SD fine chemicals (India) and prepared 0.1% aqueous solution for spectrophotometric determination of Zr⁴⁺. HCl solution of pH 3.5 was used to precondition the column.

Systronics digital pH meter 335 with a combined glass electrode was used for pH measurements. A Shimadzu 2450 UV-visible spectrophotometer with a 1 cm quartz cell was used for spectrophotometric determination of Zr⁴⁺. A glass column (150 mm length-10 mm internal diameter, J-Sil make, India) was used for column studies. An orbital shaker, model BTI 39, from Bio- Technics India was used for batch experiments.

Experimental

The EIR was prepared and characterized using our earlier reported method. Briefly, an equal amount of extractant isonitroso-4-methyl-2-pentanone (1g) and the treated Amberlite XAD-4 resin (1g) were mixed in 20 mL methanol as a diluent for 5 hrs using an orbital shaker. Thus obtained EIR was oven dried to remove excess diluent followed by washing with dilute HCl and DDW. Then EIR was subjected to batch adsorptiondesorption cycles for Zr⁴⁺. All sorption and desorption experiments for Zr⁴⁺ removal was performed in triplicate at 298 K.

Experimental for column method

The EIR 100 mg was packed in a glass column having glass wool as support. The column was preconditioned with 25 mL of pH 3.5 solution of HCl. This was followed by Zr⁴⁺ sorption by passing a 25 mL aqueous solution containing 20 μg Zr⁴⁺ at optimized pH (3.5) with an optimum flow rate of 2 mL/min. The sorbed Zr⁴⁺ was desorbed using 10 mL of 0.1 M oxalic acid at the flow rate of 0.2 mL/min. Then Zr⁴⁺was analyzed spectrophotometrically with arsenazo III at 670 nm [37]. The optimum conditions for sorption of Zr⁴⁺ are summarized in Table 1.

Table 1: Optimum conditions for sorption of Zr⁴⁺ by EIR.

Experimental for batch method

Batch mode experiments were performed to get insights into the sorption behavior of Zr⁴⁺ by EIR. 100 mg of EIR was preconditioned with 25 mL of pH 3.5 solution of HCl in 125 mL stoppered glass bottles i.e., shaking vessels. This was followed by the sorption of 25 mL Zr⁴⁺ solutions at different concentrations in the range of 4 mg/L-800 mg/L on preconditioned EIR. The sorption process was performed by shaking glass bottles for 40 min at 150 rpm and then allowed to settle for 10 minutes. The EIR was separated from the aqueous phase using Whatman filter paper no. 42. After sorption, recovery of Zr⁴⁺ was achieved using 10 mL of 0.1 M oxalic acid while shaking for 30 min at 100 rpm. The concentrations of Zr⁴⁺ before and after sorption were determined by spectrophotometrically with arsenazo III at 670 nm [37]. The amount of Zr⁴⁺ adsorbed per unit weight of EIR, qt (mg/g) at time t was calculated using equation (1) where C₀ and C_t are the initial and liquid-phase concentrations of Zr⁴⁺ (mg/L) at time t, respectively, V is the volume (L) of Zr⁴⁺ solution and m is the mass (g) of EIR.

Results and Discussion

Plausible extraction mechanism

The schematic illustration of a plausible mechanistic pathway for the sorption-desorption of Zr⁴⁺ by EIR is shown in Figure 1. As Amberlite XAD-4 resin has hydrophobic nature, it attracts the hydrophobic tail of the extractant molecules, which results in impregnation of resin by extractant. Step I show conditioning of EIR at pH 3.5 with HCl solution. After conditioning, Zr⁴⁺ forms a complex with the hydrophilic head of the extractant and results in sorption of Zr⁴⁺ (step II). This sorption is then followed by desorption step III, in which eluting agent (10 mL 0.1 M oxalic acid) forms a stronger complex as zirconium oxalate and results in desorption of sorbed Zr⁴⁺. Thereafter, washing EIR material is reused for additional further sorption-desorption cycles.

Figure 1: Schematic illustration of plausible mechanistic for sorptiondesorption of Zr⁴⁺ by EIR.

Column method

Optimization of pH

Sorption study of Zr⁴⁺ was found to be pH dependent. Therefore, sorption behavior from the analyte phase was studied in the pH range 1-6 using column mode under the experimental conditions: 25 mL aqueous solution containing 20 μg Zr⁴⁺ at the flow rate 2 mL/min and 10 mL eluent phase of 0.1 M oxalic acid at the flow rate 0.2 mL/min. The results of the pH dependence study are shown as a plot of percentage recovery against pH in Figure 2, which shows that initially the sorption increased with increasing pH 1 to 3. Then the highest sorption was quantitative between pH 3-4. Further increase in pH showed a drastic decrease in the sorption of Zr⁴⁺ up to pH 6. Therefore, pH 3.5 was considered as the optimum pH and used for further studies.

Figure 2: Effect of analyte phase pH on the sorption in terms of recovery of Zr⁴⁺ under the conditions: 25 mL analyte solution containing 20 μg Zr⁴⁺ and 10 mL eluent of 0.1 M oxalic acid at the flow rate 0.2 mL/min.

Effect of flow rate and volume

The frequency of analysis by column method in SPE depends on the flow rate of the analyte solution. Thus, the aqueous phase flow rate optimization was carried out by varying its flow rate from 0.5 to 3.5 mL/min. The result on the variation of flow rate is shown in the form of the plot of Zr⁴⁺ recovery against flow rate in Figure 3. It was observed that Zr⁴⁺was quantitatively sorbed from 0.5 mL/min to 2.5 mL/min flow rate. On increasing the flow rates beyond 2.5 mL/min indicated a drastic decrease in the sorption of Zr⁴⁺. Hence, the sample flow rate of 2 mL/min was considered optimum for further studies.

Figure 3: Effect of flow rate on the sorption of Zr⁴⁺ under the experimental conditions: 25 mL analyte solution containing 20 μg Zr⁴⁺, pH 3.5 and 10 mL eluent of 0.1 M oxalic acid at the flow rate 0.2 mL/min.

The Pre-concentration Factor (PF) is the major parameter for defining the superiority of a SPE method. It is given by the ratio of the maximum volume (mL) from which the analyte can be quantitatively recovered to the volume of eluent (mL) used for desorption of the analyte Zr⁴⁺. Therefore, to optimize PF, different volumes of the analyte solutions (10 mL to 2000 mL) containing 20 μg Zr⁴⁺, were passed through the column at pH 3.5. The results in terms of the plot of Zr⁴⁺ recovery against sample volume is presented in Figure 4. The recovery of Zr⁴⁺ was found to be quite quantitative (99.2 ± 0.6%) up to 2000 mL of analyte solution.

Therefore, the optimum PF for the method was found to be 200, where the eluent volume used was 10 mL.

Figure 4: Effect of analyte volume on the sorption of Zr⁴⁺ under the experimental conditions at the different volume of analyte solutions containing 20 μg Zr⁴⁺ at the flow rate 2 mL/min, pH 3.5 and eluent 10 mL of 0.1 M oxalic acid at the flow rate 0.2 mL/min.

Optimization of eluent phase parameters

The optimization of the eluent phase was carried out using different acids such as HCl, HNO₃, H₂SO₄, HClO₄, CH₃COOH, and oxalic acid (H₂C₂O₄) with their varied concentration from 0.01–4 M where recovery of Zr⁴⁺ was performed as its sorption. Table 2 summarizes the results due to different eluent with different parameters studied for recovery of Zr⁴⁺ using EIR in column mode. Table 2 clearly shows that the quantitative recoveries of 99.1 ± 0.3% and 99.2 ± 0.6% were achieved using 10 mL of 2 M H₂SO₄ and 0.1 M H₂C₂O₄, respectively, at the flow rate of 0.2 mL/min. However, the higher concentration of H₂SO₄ resulted in leaching, i.e., removal of extractant solvent from resin, and ultimately showed the diverse effect on reusability of EIR. Therefore, 10 mL of 0.1 M H₂C₂O₄ at the flow rate of 0.2 mL/min was used as an optimum eluent for further study. The recovery of Zr⁴⁺ using H₂C₂O₄ was possible due to formation of zirconium oxalate complex during desorption step III, as shown in plausible mechanism.

Table 2: Summary of eluent phase study using different acids with their varied concentrations.

Stability test of column

The stability study of EIR was essential to establish the number of cycles for which the same EIR material could be used for successive and quantitative sorption and desorption process. The stability of EIR was calculated by passing a 25 mL sample solution containing 20 μg Zr⁴⁺ through the column, and the analyte Zr⁴⁺ was recovered with 10 mL of 0.1 M H₂C₂O₄, the results are presented in Figure 5. It was observed the column was relatively stable up to 90 cycles with 97.0 ± 0.9% recovery of Zr⁴⁺, which confirmed very high reusability and consistency of the developed EIR (Figure 5).

Figure 5: Stability test of the column using 25 mL solution containing 20 μg Zr⁴⁺ at the flow rate 2 mL/min, pH 3.5 and 10 mL eluent of 0.1 M oxalic acid at the flow rate 0.2 mL/min.

Effect of foreign ions

In general, real samples comprise of a matrix which can interfere in the analysis of the analyte. Therefore, setting up limits of interference for most commonly co-existing ions is one of the important parameters in developing SPE method. A known amounts of co-existing ions were added to 25 mL of the aqueous solution containing 20 μg of Zr⁴⁺ and recovery experiments were carried out using the developed column method. The tolerance limit was set as the maximum concentration of the foreign ions, which caused an approximately ± 2% relative error in the quantitative recovery of Zr⁴⁺. The results obtained shown in Table 3 show that the alkali and alkaline earth metal ions like.

Na⁺, K⁺, Ca²⁺ and Mg²⁺ had the highest tolerance limit up to 5000 μg. Some p-and d-block cations (Pb²⁺, Mn²⁺, Zn²⁺, Cd²⁺, V⁵⁺, Cr³⁺, Cr⁶⁺, Ni²⁺, Co²⁺, Al³⁺, Cu²⁺) had good tolerance limit in the range 1500 μg-400 μg. The anions of inorganic and organic acids have resulted in a good tolerance limit in the range of 5000 μg-100 μg. Rare-earth element interference was also studied, and many of them had low tolerance limits in the range of 300 μg-20 μg. Th⁴⁺, V⁴⁺, and Fe³⁺ had shown serious interference in Zr⁴⁺ sorption at 20 μg.

Table 3: Interference study of some common co-existing ions in the sorption of Zr⁴⁺ by EIRa.

Batch method

Evaluation of batch parameters

The first parameters evaluated in the batch method were shaking time and shaking speeds which are concerned with the environmental utility of SPE method developed for the sorptive removal of Zr⁴⁺ by EIR. The effect of shaking time was investigated from 5-120 minutes while shaking speed was in the range 50-200 rpm for Zr⁴⁺ sorption, i.e., extraction at pH 3.5 with initial Zr⁴⁺ concentration of 0.8 μg/mL (i.e., 20 μg in 25 mL). The investigation results on shaking time and shaking speed optimization for Zr⁴⁺ sorption on EIR are shown in Figure 6. Initially, the sorption increased with contact time as well as shaking speed. It was observed that at 50 and 100 rpm shaking speeds, the sorption equilibrium time was 100 and 80 minutes, respectively and decreased as the shaking speed was increased. Figure 6 clearly shows that at the shaking speed of 150 and 200 rpm, equilibrium time came down to 40 minutes. Therefore, a shaking speed of 150 rpm and a shaking time of 40 minutes were taken as optimized conditions for further batch study.

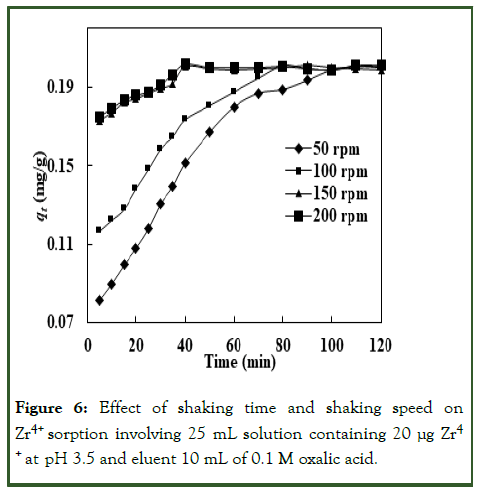

Figure 6: Effect of shaking time and shaking speed on Zr⁴⁺ sorption involving 25 mL solution containing 20 μg Zr^{4 +} at pH 3.5 and eluent 10 mL of 0.1 M oxalic acid.

Kinetic behavior

The kinetic models like pseudo-first order, pseudo-second order, and the Weber-Morris pore diffusion [38] were used to explain the sorption behaviour of Zr⁴⁺ by developed EIR. The pseudofirst order, pseudo-second order, and the Weber-Morris pore diffusion models used in this study are shown in equations (2), (3), and (4), respectively where q_e, q_t, k₁, k₂, k_id and C are amount of sorbed solute at equilibrium condition (mg g^-1), the amount of sorbed solute (mg g^-1) at any time t (min), pseudo-first order rate constant (min^-1), pseudo-second order rate constant (g mg^-1 min^-1), is the intraparticle diffusion model rate constant (mg g^–1 min^-1), and intraparticle diffusion constant related to boundary layer thickness, respectively [39-41].

The pseudo-first order and pseudo-second order rate equations (2) and (3), respectively, were used to explain the adsorption process of Zr⁴⁺ from the liquid phase [42]. The pseudo-first order plot of log (q_e-q_t) against time (t) is shown in Figure 7a showed the correlation co-efficient, R²=0.9936. However, the pseudo-second order plot of (t/qt) against time (t) (Figure 7b) was found to be strictly linear with a higher correlation coefficient (R²=0.9975) than obtained in the case of pseudo-first order model. The values of qe determined from pseudo-first order and pseudo-second order plots were found to be 0.0345 mg/g and 0.203 mg/g, respectively (Table 4). In addition, the q_e (cal) value obtained from pseudo-second order equation was in agreement with the experimental value of qe (0.201 mg/g). Therefore, the pseudo-first order model cannot describe the mechanism of Zr⁴⁺ sorption process developed by EIR. However, higher value of R² and quite close values of calculated and experimental qe signpost the applicability of pseudo-second order kinetics to describe Zr⁴⁺ sorption process by developed EIR and confirmed that the adsorption process was surface reaction controlled with chemisorption involving valence forces through sharing or exchange of electrons between adsorbent and adsorbate (Figure 7) [43].

Figure 7: Different kinetics model plots: (a) Pseudo-first order, (b) Pseudo-second order and (c) Weber-Morris pore diffusion.

Table 4: Summarized results of kinetic behavior with respect to pseudo-second order, pseudo-second order and the Weber-Morris pore diffusion model.

The diffusion of the sorbate into the interior pores of the resin bed is a generally slow process. The existence of such pore diffusion and determination of whether this pore diffusion is the rate determining step in the adsorption process was confirmed by the Weber-Morris pore diffusion or internal diffusion model [44]. A straight line with an intercept on the yaxis was observed in the Weber-Morris plot (Figure 7c), which suggested that rapid Zr⁴⁺sorption by EIR was governed by both surface diffusion and pore diffusion process. The correlation coefficient (R²=0.9956) and intercept (C=0.1607; Table 4) obtained from the Weber-Morris plot confirmed two different rate of mass transfer in the initial and final stages of sorption.

This also indicated some degree of boundary layer control, which implied that intra-particle diffusion was not only the ratecontrolling step.

Isotherm behavior

The adsorption isotherms for Zr⁴⁺sorption by EIR were obtained with different concentrations in the range of 4-800 mg/L at 298 K. The experimental results obtained are shown in Figure 8a in terms of plot of sorption capacity (q_e) against the concentration of Zr⁴⁺. From the sorption capacity curve for Zr⁴⁺ sorption by EIR, q_e (exp) value was obtained as 24.28 mg/g. The linear form of Langmuir, Freundlich, and Dubinin- Radushkevich (D-R) isotherm models shown in equations (5),(6), and (7), respectively, were applied to correlate the experimental data [45]. In these models, C_e, q_e, q_m, q_s, K_F, K_DR, b, n, E_DR and ε are solute aqueous concentration at equilibrium (mg/L), amount of solute sorbed per unit weight of sorbent at equilibrium (mg/g), Langmuir isotherm constant related to sorption capacity (mg/g), Dubinin-Radushkevich isotherm constant related to sorption capacity (mg/g), Freundlich isotherm constant related to sorption capacity ((mg/g)/(mg/L)n), Dubinin-Radushkevich constant related to the mean free energy of sorption (mol²/kJ²), Langmuir constant related to energy or net enthalpy of sorption (L/mg), Freundlich isotherm constant related to sorption intensity of the sorbent, mean energy of sorption process, and Dubinin-Radushkevich isotherm constant related to Polanyi potential calculated by equation (ε=RT ln(1+1/C_e)) at temperature (T in K) using the gas constant (R=0.00813kJ/mol K^-1), respectively (Table 5).

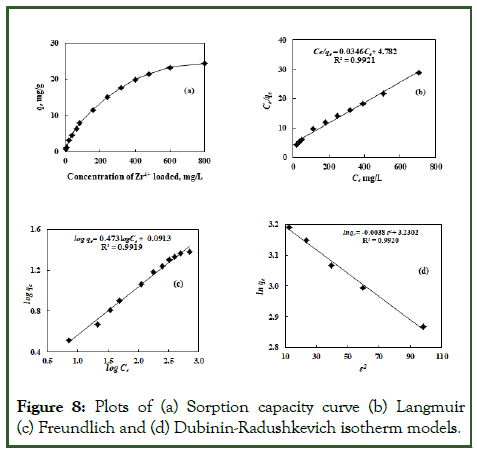

Figure 8: Plots of (a) Sorption capacity curve (b) Langmuir (c) Freundlich and (d) Dubinin-Radushkevich isotherm models.

Table 5: Isotherm parameters obtained from Langmuir, Freundlich and D-R models at 298 K.

The calculated parameters for three different isotherm models have been shown in Table 5. Langmuir model assumes that a monolayer sorption occurs at energetically equivalent sites. The plot of C_e/q_e against Ce in Langmuir isotherm was found to be linear over the whole concentration range of 4-800 mg/L with correlation co-efficient, R²=0.9921 (Figure 8b). Furthermore, values of qm and b were calculated from the slope and intercept of the plot of Langmuir isotherm (Figure 8b) and were found to be 28.9 mg/g and 0.0072 L/mg (Table 5), respectively. Although the results could be well fitted and qm value calculated; this is not the best model to be used for Zr⁴⁺ sorption with EIR. This is because the Langmuir model is applicable for homogeneous adsorbents, while EIR is a heterogeneous adsorbent, as has been characterized in the present study.

The applicability of the Freundlich isotherm model to the experimental data was important as this isotherm involves the sorption on a heterogeneous surface like EIR. This isotherm assumes that when the adsorbate concentration in the solution increases, its concentration on the adsorbent surface also increases. The Freundlich constants, K_F and n were calculated from the intercept and slope of the Freundlich isotherm plot of log q_e against log C_e (Figure 8c) and found to be 1.234 mg/g and 2.11 mg/g, respectively (Table 5). The value of Freundlich constant (n) obtained was between 1 and 10 which confirmed a high sorption potential of EIR.

The D-R isotherm is based on the adsorption in micropores leading to pore-filling rather than layer by layer surface coverage, and it is applied to estimate the mean free energy of adsorption (ε), which is the energy required to transfer one mole of an adsorbate to the surface from infinity in solution. The value obtained for EDR using the D-R plot of log qe against ε² (Figure 8d) was 11.47 KJ/mol, which suggested that the sorption of Zr⁴⁺ by EIR involved a chemical sorption pathway. The sorption capacity q_s (cal) obtained from the D-R plot was found to be 25.27 mg/g (Table 5), which is in excellent agreement with q_e (exp.) (24.28 mg/g) obtained from the sorption capacity curve.

Analytical applications

Zr⁴⁺ determination from synthetic mixtures

The developed method was applied for the determination of Zr⁴⁺ at trace level in different synthetic mixtures (Table 6) as recovery of Zr⁴⁺ from 25 mL matrix. Table 6 shows that Zr⁴⁺ could be quantitatively determined from complex matrices. Th⁴⁺ was co-extracted with Zr⁴⁺, but its separation was achieved by masking Th⁴⁺ in an aqueous phase using 1 mL of 0.01 M EDTA.

Table 6: Determination of Zr4+ from some synthetic mixtures.

Determination of Zr⁴⁺from water samples

The developed column method was validated through checking recovery of Zr⁴⁺from spiked water samples. All water samples were iso-kinetically collected in polyethylene bottles from different areas of Jalgaon and Mumbai (Maharashtra, India) and filtered through a membrane filter with a pore size of 0.45 mm. Then 25 mL of each of the water of samples were spiked with different amounts of standard Zr⁴⁺ solution as shown in Table 7. The spiked samples were then subjected to the developed column method for the determination of Zr⁴⁺ and the recoveries of Zr⁴⁺ are reported in Table 7. The results show the quantitative recovery of Zr⁴⁺ in the range of 99.4%-100.0% from spiked water samples.

Table 7: Recovery of Zr⁴⁺ from different spiked water samples.

Conclusion

The present study confirmed that the impregnation of Amberlite XAD-4 resin by extractant IMP is quite significant for the pre-concentration and determination of Zr⁴⁺. Modification of resin resulted in the heterogeneous surface covered by extractant and was utilized for sorption of Zr⁴⁺ by chemisorption pathway. Sorption was quantitative at pH 3.5 with the flow rate of 2 mL/min and sorbed Zr⁴⁺ easily recovered 98.5 ± 0.6% with 0.1 M oxalic acid (10 mL) at the flow rate 0.2 mL/min. The kinetics of the sorption process was well described using pseudosecond order model. The maximum sorption capacity of EIR for Zr⁴⁺ was calculated to be 25.27 mg/g using the D-R isotherm model. Based on the outcomes of the current work, the prepared EIR can be used as a promising adsorbent for the treatment of wastewaters containing Zr⁴⁺ upto 90 cycles.

Acknowledgements

Authors are thankful to the KBC North Maharashtra university for the laboratory facilities to carrying out the research. The author (S. Prasad) is grateful to the University of the South Pacific for support in various ways.

Funding

One of the authors (SRT) appreciates University Grant Commission (UGC), India, for the financial support given via the research fellowship in science for meritorious students (RFSMS) vide letter no. F.7-136/2007(BSR), dated 19/10/2012.

Contributors

All authors have contributed equally to this article.

Conflict of Interest

The authors declare that they have no conflict of interest.
