Agrotechnology

Role of bio char on the amelioration of soil acidity

Kedir Jemal^* and Abrham Yakob Wondo Genet Agricultural Research Center, Ethiopian Institute of Agricultural Research, Ethiopia
^*Correspondence: Kedir Jemal, Wondo Genet Agricultural Research Center, Ethiopian Institute of Agricultural Research, Ethiopia, Email:

Received: 20-May-2021 Published: 13-Jun-2021, DOI: 10.35248/2168-9881.21.10.212

Introduction

Biochar is a fine grained highly porous charcoal (carbon) that can be formed as a result of the pyrolysis of biomass in a complete or absence of oxygen and it is different from other charcoals for intended use as a soil amendment [1,2]. Biochar is a material produced from organic matter under high temperature and low oxygen conditions. In recent years, scientific attention has been focused on its effect on soil amendment and ecological restoration. The pyrolytic process converts biomass acids into the bio-oil component and the alkalinity is inherited by the solid biochar [3]. Inorganic carbonates and organic anions are alkaline components in biochar [4-6]. When biochar is produced at different temperatures, their alkalinity increases with increasing charring temperature [7]. The pyrolytic process converts biomass acids into the bio-oil component and the alkalinity is inherited by the solid biochar [8]. Inorganic carbonates and organic anions are alkaline components in biochar [9,10]. When biochar is produced at different temperatures, their alkalinity increases with increasing charring temperature [11,12].

The thermal conversion of biomass (pyrolysis) in a low or no oxygen environment produces high carbonaceous biochar material or charcoal with unique characteristics [13]. Biochars are highly recalcitrant with carbon sequestration benefit [14] and can influence soil pH [ 15]. It was observed that application of biochars to acidic soil increases its sorption capacity for nutrients [16] and reduces the exchangeable acidity [17]. Higher pyrolytic temperature (>400°C) was observed to produce biochars with alkaline pH [18,19]. Several studies have already observed the beneficial effects of biochar on soil quality and fertility parameters. Before applying these biochars to acidic soils as amendment, it will be necessary to analyze their composition and liming potential.

The alkaline substances in biochar are more easily released into the soil compared with its feed stock when biochar samples are incubated with the soil [20]. The liming effect of biochar on acidic Ultisols had been confirmed [21-25]. It is indicated that theapplication of biochar can increase the pH in highly weathered tropical soil [26]. The alkalinity of biochars was a key factor affecting their liming potential [27]. When biochar with higher pH value was applied to the soil, the amended soil generally became less acidic [28]. The ameliorating effects of biochar on soil pH clearly increased with increasing biochar application rates [29]. The improvement of crop growth from biochar amendment of a typical Ultisol may result from an increase of pH and cation exchange capacity (CEC) [30].

There are many soil amendment technologies to improve soil properties such as chemical fertilizers, organic fertilizers and lime. The potential of biochar as a soil amendment in agricultural fields is a recently recognized and yet it is underutilized technology. Biochar, (also commonly known as charcoal or agrichar) is defined as a carbon(C) rich product derived from the pyrolysis of organic material at relatively low temperatures (<700°C) [31]. It stores carbon for long time, ameliorates degraded soils and reduces soil acidity for better crop production [32]. It improves crop yield when applied as a soil amendment [33]. Biochar application improves crop productivity through enhancing water holding capacity, cation exchange capacity(CEC), adsorption of plant nutrients and creates suitable condition for soil micro-organisms [34,35].

Biochar can be produced from different plant materials including wood chip and wood pellets, tree bark, crop residues, grasses, organic wastes (distillers’ grain, bagasse, olive waste) [36]. Except olive waste, all sources are found in Ethiopia. Fine grained parts of commercial charcoal which cannot be used or sold could be used as biochar [37] reported an estimate of 30 to 40 % by weight of charcoal production.

The physical and chemical characteristics of any amendment determine its effectiveness as liming agent[38]. The ameliorating ability of biochars can be varied due to differences in their physical and chemical properties. These biochar properties are influenced by pyrolytic parameters and feedstock type [39,40]. The liming effect of any amendment can be determined by studying soil indices such as soil pH and exchangeable acidity [41]. Liming potential of a material can also be predicted by its properties such as calcium carbonate equivalence and ash alkalinity [42,43]. Little information is available on the liming potential of biochars produced from various pyrolytic processes using different biomass feedstocks and their associated reaction mechanisms to reduce soil acidity. It was hypothesized that biochars produced from microwave pyrolysis using corn stover and switchgrass had a permanent ameliorating effect on chemical properties of acidic soil. The ameliorating effect of biochars on acidic soil was assumed to be consistent with their composition and properties which depend on biomass feedstock type and pyrolytic conditions.

Today, in many countries bio-char has widely been accepted and given great attention not only due to its contribution in lowering climate change but also as a desirable soil conditioning material that can enhance fertility and reduce the need for expensive fertilizers and agro-chemicals. Thus, improving the soil quality through increased biomass use efficiency without causing too much environmental pollution would ensure food security in the country. Thus, this review was taken up with the following objectives in mind.

Objective

To understand suitability of biochar as an amendment for acid soils To study the effect of biochar addition on soil properties related to soil acidity To evaluate the influence of biochar addition on growth and yield of crops

Importance of Biochar

Biochar has agronomic as well as environmental impact for it is a good soil amendment. Evidence shows that the application of biochar can play a significant role in improving soil organic carbon [44], water holding capacity [15-16], soil aeration, increased soil base saturation, nutrient retention and availability and reducing nutrient leaching [45], enhancing plant growth and productivity, reducing greenhouse gas emission and increasing carbon sequestration [46]. Carbon sequestration in soil is favored for improving soil quality and achieving sustainable use of natural resources [47]. It improves water holding capacity and aggregate stability, CEC and soil pH [48].

Biochar is obtained from the pyrolysis or thermal decomposition of surplus and readily accessible biomass which has been proved to be an effective means of carbon sequestration and immobilization of organic contaminants in soil [49]. The use of biochar for remediation is not a new concept, it has been found in areas of the fertile Amazon Basin. The terra pretasoils of the region received large amounts of charred organic debris from the former inhabitants. Thus, carbon stocks have remained in the soil present day, thousands of years after abandonment providing a historical basis for the benefits of biochar for sequestration and fertility [50].

Biochar application in soils has gained much attention as a climate change mitigation strategy, as it can sequestrate carbon [34-36]. As well as improve soil properties such as nutrient availability, pH value, water-holding capacity and bulk density [51,52], but it has no consistent effects on soil infiltration rates, CEC, and crop yields [53]. The previous results presented various effects of biochar on soil because the properties of biochar derived from different feedstock and conditions were various [54]. The biochar shows different effects when applied to different types of soil [55]. In addition, plants response in different way under different types of biochar application or different application dose. A review of previous research showed a huge range of biochar application rates (0.5–135 t/ha of biochar) as well as a huge range of plant responses (229% to 324%) [56]. Hence, different biochar should be developed for different soils and plants.

Rice husk and wood sawdust are the main feedstock used to produce bio-oil by fluidized-bed reactors or other fast pyrolysis systems in China [28]. Abundant biochar produced during the process of fast pyrolysis as by-product. Cao and Pawlowski evaluated the fast pyrolysis systems by life cycle assessment and reported that fast pyrolysis could be credited with a potential of not only producing considerable net energy but also reducing greenhouse gas emissions [29]. In this context, the objective of this research is to investigate the possible application of biochar in acidic soil improvement by assessing the effects of biochar derived from rice husk and wood sawdust by fast pyrolysis on the properties of acidic soil and radish growth.

Impacts of biochar on soil

Biochar has substantial potential for soil improvement because of its unique physical, chemical, and biological properties and their interactions with soil and plant communities. If used as a soil amendment, biochar could mitigate the possible negative impacts of forest biomass removal operations. However, uncertainties surround the potential short-and long-term effects of intentional biochar application in many regions and ecosystems, namely temperate forests, as most evidence comes from agricultural systems. While additions have largely been neutral or positive [57], there exists potential for negative impacts. This demonstrates the need for a comprehensive understanding of biochar’s origin, production, and functional properties several soil benefits arise from the physical properties of biochar. The highly porous nature of biochar results from retaining the cell wall structure of the biomass feedstock. A wide range of pore sizes within the biochar results in a large surface area and a low bulk density. Biochar incorporation can alter soil physical properties such as structure, pore size distribution and density, with implications for soil aeration, water holding capacity, plant growth, and soil workability [58]. Evidence suggests that biochar application into soil may increase the overall net soil surface area consequently, may improve soil water and nutrient retention [19], and soil aeration, particularly in fine-textured soils [20]. Biochar has a bulk density much lower than that of mineral soils (~0.3 Mg m-3 for biochar compared to typical soil bulk density of 1.3 Mg m-3); therefore, application of biochar can reduce the overall total bulk density of the soil which is generally desirable for most plant growth. Increased surface area, porosity, and lower bulk density in mineral soil with biochar can alter water retention, aggregation, and decrease soil erosion. Biochar feedstocks and pyrolysis conditions largely determine the resulting carbonate concentrations, making some biochar a better liming agent than others. Concentrations of carbonates can vary from 0.5 to 33% depending on starting conditions [31].

Hardwood charcoals are reported to have substantial carbonate concentrations and prove more effective in reducing soil acidity, therefore having a larger influence on soil fertility [59]. The liming of acidic soils decreases Al saturation, while increasing cation exchange capacity and base saturation. Biochar properties may enhance soil microbial communities and create microenvironments that encourage microbial colonization. Biochar pores and its high internal surface area, and increased ability to adsorb OM provide a suitable habitat to support soil microbiota that catalyze processes that reduce N loss and increase nutrient availability for plants [19]. The pores are suggested to serve as a refuge by protecting microbes from predation and desiccation while the organic matter adsorbed to biochar provides C energy and mineral nutrient requirements [17]. In temperate ecosystems with wildfire-produced charcoal, N mineralization and nitrification are enhanced by creating favorable microenvironments that enhance colonization by microbes [10-12]. If microbial activity is able to oxidize biochar, we need to know which microbes can achieve this, the mechanism by which it occurs, and under what conditions and at what rate this will take place.

Biochar Composition

Biochar is produced from biomass and is predominantly composed of recalcitrant organic C with contents of plant micro and macro nutrients retained from the starting feedstock. We know from research on wildfire occurrence and the development of Anthrosols in the Amazon that charcoal can remain in the soil for hundreds to thousands of years[28]. Consequently, biochar can rapidly increase the recalcitrant soil C fraction of soil. The C in biochar is held in aromatic form which is resistant to decomposition when added as a soil amendment making it a C sequestration tool. However, composition varies by feedstock type and conditions of pyrolysis [52].

The organic carbon, total N and the available P contents of biochar were high. Exchangeable K, Ca, and Mg concentrations of the biochars were medium to high. However, higher carbon and total N content than sugarcane bagasse biochar, but the contents of exchangeable cations and CEC in sugarcane bagasse biochar were higher than in coffee husk biochar (Table 1). Both boichars contained plant nutrients in addition to its action as soil conditioners. However, it is better to apply biochar together with additional nutrients to enhance its function (Steiner et al., 2008). Other studies indicated that biochar has been shown to retain nutrients against leaching [56-58], potentially improving the efficiency of nutrients applied alongside biochar [59]. The chemical properties of biochar vary based on the type of feedstock used for charring, the charring environment (e.g. temperature, air) and additions during pyrolysis process [60]. The source of biochar material strongly affects the content and availability of nutrients in the soil after amendment. The soil chemical properties after amendment will strongly be affected by source of biochar applied.

Effects of biochar addition on soil Properties related to soil acidity

Soil pH and Exchangeable Acidity

According to soil analysis result before application of treatments, exchangeable Al was trace, and the exchangeable acidity value was 0.60 cmolckg^-1. also It reported that exchangeable acidity of the area lies between 0.78-0.60 cmolckg^-1. Post-harvest soil analysis results showed that application of biochar and lime showed relative reduction on exchangeable acidity. Addition of biochar from lower rate to higher rates produced a reduction trend of exchangeable acidity. Incorporation of 12 t ha-1 biochar gave the lowest exchangeable acidity (0.39 cmolc kg^-1) followed by 2 t ha-1 lime (0.44 cmolc kg^-1), whereas the highest exchangeable acidity was (0.60 cmolc kg^-1) from the control plots (Figure 1). Lowering of exchangeable acidity and a rise in pH can provide a wide range of benefits in terms of soil quality, notably by chemically improving the availability of plant nutrients, and in some cases by reducing the availability of detrimental elements such as Al [14].

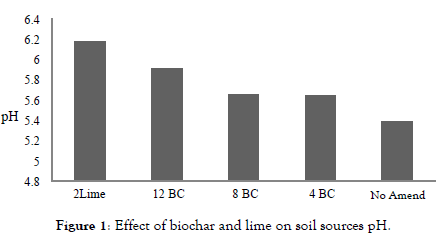

Figure 1: Effect of biochar and lime on soil sources pH.

Soil available P

Soil available P increased after application of biochar and lime. As biochar rates increased, availability of P also increased. It increased from 12.75 ppm without amendment to 18.92 and 17.50 ppm after application of 12 t ha-1biochar and 2 t ha-1 lime, respectively (Figure 2). Soil analysis result showed that application of fertilizer increased available P and 14.70, 16.35 and 17.30 ppm were found on the application of 0, 23/30 and 46/60 (N/P2O5) kg ha- 1,respectively. Accordingly, application of biochar and lime with fertilizer and without fertilizer showed different values on available P. As the rate of biochar and the rate of fertilizer increased, the P value also increased. This could be due to the synergetic effect of biochar and the fertilizer. As biochar is added to the soil, the pH of acidics oil is raised and the amount of fixed P could be reduced.

Figure 2: Effects of Biochar and lime on variable phosphorus.

Consequently, the applied P could not be reacting with Aland Fe and precipitated as AlPO4 and FePO4. Available P increment in the soil system may be due to application of the readily available P as DAP fertilizer. This result indicates that the availability of the applied P fertilizer couldsupported by the application of biochar and lime. It is observed significant increasedbread wheat growth averaging about 2.5-fold more than the control when paper mill biochar with fertilizer wasapplied to an acidic highly weathered soil. The lime (as carbonates) in the biochar decreased the availability of Alto below detection limit. It is also reported that application of lime could increase availability of P. This was due to lime could increase available P which was fixed by Al and Fe an increase of available P on application of biochar could happen due to two reasons: the first one is that liming effect of biochar on acid soil that precipitates Al and Fe as Fe (OH)3 and Al (OH)3, thus increases availability of phosphorus in the soil system [61]. According to Griffith and Tisdale, under acid conditions, phosphorus is precipitated as Fe or Al phosphates. Maximum availability of phosphorus generally occurs in a pH range of 6.0 to 7.0. It is also indicated that phosphorus is most available nearpH 6.5 for mineral soils. Tisdale also discussed that P availability is at maximum in the pH range 5.5-6.0. Maintaining a soil pH in this range also favors the presence of H2PO4– which is more readily absorbed by the plant than HPO42- and occur at pH values above 7.0 [62].

Available P increment in the soil system may be due to application of the readily available P as DAP fertilizer. This result indicates that the availability of the applied P fertilizer could be supported by the application of biochar and lime. It is observed significant increased bread wheat growth averaging about 2.5-fold more than the control when paper mill biochar with fertilizer was applied to an acidic highly weathered soil [63]. The lime (as carbonates) similar to the biochar decreased the availability of Al to below detection limit. The application of lime could increase availability of P. This was due to lime could increase available P which otherwise could be fixed by Al and Fe.

Cation Exchange Capacity (CEC)

The soil analysis result showed that incorporation of biochar and lime increased CEC of the soil. High CEC values(20.73 and 19.05 cmolc kg^-1) were found on plots treated with 2 t ha-1 of lime and 12 t ha^-1 of biochar, respectively, whereas the lowest CEC (14.69 cmolc kg^-1) was found in the control plots (Figure 3). Generally, all biochar treatments showed higher CEC than the control one. Application of 4, 8 and 12 t ha^-1 of biochar gave 6.13%,11.25% and 29.68% CEC increment, respectively over the control. The increase in CEC could have resulted from the inherent characteristics of the biochar, since biochar has high surface area that has exposed negative charges. Itis highly porous, contains variable charge, and hence improves surface sorption capacity when added to the soil [15]. Edmundsalso mentioned that biochar has high CEC. Glaser discussedthat after weathering, oxidation occurs that results in the formation of carboxylic groups on the edges of the aromatic carbon, which results in greater CEC.

Figure 3: CEC as influenced by biochar and lime application.

The benefit of lime to enhance CEC was reported [1]. They discussed that liming of acidic soil have positive effect on CEC. The direct relationships between pH, exchangeable Ca and CEC with the increase of the lime rates is attributed to the applied lime which enhances the concentration of Ca²⁺ and thereby increases the soil pH due to the replacement of H⁺ and Al³⁺ from the soil solution and soil exchange complex by Ca²⁺. The direct relationship of CEC with soil pH may be attributed to the presence of pH dependent negative charges which can increase with increasing soil pH due to applied lime.

Organic Carbon and Total Nitrogen

Based on the soil analysis result, higher organic carbon (1.91% and 1.84) were found on 2 t ha^-1 lime and 12 t ha^-1 biochar, respectively whereas the lowest content (1.66%) was found from control plots (Table 1). The soil analysis data revealed that soil organic carbon increased by biochar application. Similarly, It is reported that due to application of lime soil organic carbon was increased. This is due to the raise of soil pH in short period of time that favors soil microbes to decompose crop residues.

Table 1: Effect of biochar and lime on soil chemical properties.

Application of biochar resulted in little differences on total nitrogen. Actually, the study area has low total nitrogen [4]. Intensive cultivation as well as less crop residue management may contribute significant roles for the low level of total nitrogen. Application of biochar has no direct effect on nitrogen content of the soil, but it retains nitrogen from leaching [7]. The review indicated that biochar has a high adsorption capacity of NO₃ ^- that prevents nitrogen leaching from the top soil. It is concluded that NO₃ ⁻ was only weakly adsorbed to biochar, that it could be desorbed by water infiltration[16], and that the net result may be an increase residence time for NO₃ ^- in the soil. Due to its resistance to decomposition in soil, single applications of biochar can provide beneficial effects over several growing seasons in the field [40-41]. Therefore, biochar does not need to be applied frequently, as is usually the case for manures, compost, and synthetic fertilizers. Beneficial effect of applying biochar to soil is a long lasting [42-45]. Chan reported that plant yield increase in the presence of both biochar and fertilizer is related to nitrogen fertilizer use efficiency. The study on the acidic Highlands of Ethiopia confirmed that there is no contribution of lime on nitrogen that could be due to the absence of N in put to the soil.

Yield response to application of Biochar, lime and mineral fertilizers

Significant teff yield variation was obtained by incorporating biochar and lime. The highest rate of biochar (12 t ha^-1) resulted in better yield, while application of 2 t ha^-1 lime resulted in a yield above application of 8 t ha-1 biochar and less than 12 t ha^-1 biochar applications (Table 2). In general, biochar and lime applications resulted in a significant yield increase (P<0.01) (Table 2). Application of 12 t ha^-1 biochar and 2 t ha^-1lime gave 2.67 and 2.45 t ha^-1 grain yield, respectively, while the lowest yield (1.44 t ha^-1) was obtained from control plots. Incorporation of 12 t ha^-1 biochar, 2 t ha^-1 lime, 8 t ha^-1 and 4 t ha^-1biochars had 85.66%, 70.63%, 37.79% and 19.97% yield advantage, respectively over the untreated plots.

Table 2: Effect biochar and lime on grain yield of teff.

Similar to grain yield, significant dry biomass yield variation was obtained by incorporation of biochar and lime. The highest rate of biochar (12 t ha^-1) had a better biomass yield response than the lower rates. Application of 2 t ha^-1 lime resulted in better yield than 8 t ha^-1 but less than 12 t ha^-1 biochar (Table 2). Application of 12 t ha^-1 biochar and 2 t ha^-1lime gave 17.77 and 15.03 t ha^-1 teff dry biomass yield, respectively whereas the lowest biomass yield (11.55 t ha^-1) was obtained from control treatment (Table 2).

The yield and biomass increment by incorporation of biochar in this experiment is similar to other research findings. In tropical soils, above-ground biomass was shown to increase by 189% when 23 t ha^-1 biochar was added [64]. Edmunds, reported that biochar application rate increased the switch grass biomass yield to 50.6 and 53.2 g pot^-1 in for 17 and 34 t ha^-1 biochar application rates, respectively, compared to 42.7 g pot-1 in the control. It is also reported that biochar treatments produced higher yields and produced remarkably highest number of tubercles. Large volume applications of biochar (30 and 60 t/ha) in the Mediterranean basin was sustained for two consecutive seasons and increased durum wheat biomass and yield to 30% [45].

The effect of biochar might be more pronounced in long year bases. According to [65], application of biochar on maize grain yield had no significant effect in the first year; however, in subsequent years, maize yield increased with increasing biochar rate, and the positive effect of biochar was most prominent in the third year after application. (SARE 2013) also reported that in some soil’s biochar additions did not seem to increase yields in the first year. In this report, those plots receiving biochar had a higher yield than those plots received no biochar in subsequent years. A single application of 20 t ha^-1 biochar resulted in an increase in maize grain yield of 28 to 140% as compared with the control in the 2nd to 4th years after application [38].

Plant growth effects with biochar Additions

Biochar can be used as a soil amendment to improve soil quality and crop productivity in a variety of soils [66]. This has been demonstrated primarily in soils that are highly weathered or degraded through agricultural activities [42-44]. Much of the initial information concerning biochar effects on soil parameters and crop yields has come from studying properties of Amazon Dark Earth Anthrosols to surrounding Oxisols [47]. The soils in this region, known as terra preta, were created by pre-Columbian Indians using a slash-and-char method[48].

A combination of biochars ability to raise soil pH [67], improve physical properties such as water holding capacity retain soil nutrients and reduce leaching losseslikely contribute to its ability to increase plant productivity[68].

Biochar can also affect soil nutrient availability indirectly. Amendments of biochar can add chemically active surfaces that modify the dynamics of soil nutrients or facilitate soil reaction, modify physical properties of the soil (e.g.reduce soil bulk density, increase porosity, improve water holding capacity; and encourage the formation of mineral and microbial associations with biochar particles [62-65]. Cation exchange capacity increased in all three Inland Northwest soils but only when biochar was mixed with the mineral soil. This result agrees with previous studies, which generally find a rapid CEC response with fully-incorporated biochar amendments [69], compared to those using top-dressing approaches, which fail to produce a strong influence on CEC [70]. We might expect greater cation retention over time due to increased CEC with biochar aging, and biochar movement into the mineral soil. Freshly produced biochar has less ability to retain cations resulting in minimal CEC [40-42], but with time and incorporation in the soil, the surfaces of biochar particles oxidize and interact with soil constituents, resulting in an increase in functional groups and greater surface and negative charge [71], which ultimately leads to increases in CEC. It is possible that topdressing failed to enhance the formation of organo-mineral complexes because a majority of biochar remained on the soil surface over this 30-week study, or that the biochar did not sufficiently oxidize over this time-scale, resulting in minimal change in CEC.

Biochar can indirectly affect nutrient availability by altering soil pH. Since biochar typically has higher pH than soil it can act as a liming agent resulting in an overall increase in soil pH [72]. Higher soil pH increases nutrient availability and decreases the proportion of Al+3 and H+ ions occupying cation exchange sites, which effectively increases base saturation [73]. The starting pH of the Spodosol was the lowest among the tested soils, with a value of 3.9; whereas biochar had a pH of 6.8. The surface treatment of biochar caused a small increase in soil pH of the Spodosol. The higher pH of the biochar likely explains the increase in the Spodosol pH. The Andisol had an initial pH that was similar to the pH of the biochar, which would explain why there was no change in pH relative to untreated soil following incubation. Although the Mollisol started out with a pH of 4.4, the addition of high pH biochar resulted in no significant change in pH possibly because this soil is more highly buffered [34]. Soil texture may also play a role.

Conclusions

Understanding the soil resource in an area and adoptions of management options to improve the productivity of soils is necessary for sustainable use. Use of biochar as a soil amendment with mineral fertilizer and other organic amendments has been proved to enhance agricultural productivity significantly by improving soil properties such as soil pH, electrical conductivity, organic carbon, total nitrogen, available phosphorous, CEC and exchangeable cations. Application of biochar results in positive effect on soil physico-chemical properties. In highly degraded soils it may serve as a soil amendment by increasing the soil pH, P availability, CEC and SOC in a sustainable manner. Biochar can enhance crop yield through improving the chemical and biological properties of the soil including organic carbon and other plant nutrients. The application of biochar alone and in combination with fertilizer significantly increases yield. Significant yield increase with combined application of biochar and chemical fertilizer implies that biochar improved fertilizer use efficiency. A long-term experiment for different soil types and crops is critically important to further assess the potentials of biochar in Ethiopian conditions for other ecosystem functions and mitigation of the problem of climate change.

REFERENCES

1. Abewa A,Yitaferu1 B, Selassie YG, Amare TT. The Role of Biochar on Acid Soil Reclamation and Yield of Teff (Eragrostis tef [Zucc] Trotter) in Northwestern Ethiopia. JAS. 2014;6(1):1916-9760.
2. Barber SA.Liming materials and practices. Fred Adams. 1984.
3. Blackwell P, Riethmuller G, Collins M. Biochar application to soil.Biochar formEnvironmental Management: Science and Technology. 2009.
4. Brady NC,WeilRR. The Nature and Properties of Soils (14th ed.). New Jersey: Pearson Prentice Hall. 2008.
5. CaoX, Ma L, Gao B,Harris W. Dairy-manure derived biochar effectively sorbs lead and atrazine. Environ Sci Technol. 2009;43(9):3285-3291.
6. Chan KY, Xu K. Biochar: Nutrient properties and their enhancement. In “Biochar for Environmental Management. Science and Technology.
7. Chan KY, Zwieten LV, Meszaros I, Downie A, Joseph SD. Agronomicvalues of green waste biochar as a soil amendment. AJSR. 2007;45(8):629-634.
8. Joseph SD, Camps-Arbestain M, LinY, Munroe P,Chia CH, Hook J, et al. An investigation into the reactions of biochar in soil. Aust J Soil Res. 2007;48(7):501-515.
9. Chan KY, Zwieten LV, MeszarosI, Downie A, Joseph SD. Using poultry litter biochars as soil amendments. Aust J Soil Res. 2008;46(5):437-444.
10. Clough TJ, Condron LM, Kammann C, Müller C. A review of biochar and soil nitrogen dynamics. Agronomy. 2013;3(2):275-293.
11. Downie A, Crosky A, Munroe P.Physical properties of biochar. In “Biochar for Environmental Management: Science and Technology. 2009.
12. Edmunds CW. The effects of biochar amendment to soil on bioenergy crop yield and biomass composition. Master's thesis, university of Tennessee, Knoxville. 2012.
13. Eickhout B, Bouwman A, Zeijts, HV. The role of nitrogen in world food production and environmental sustainability. Agric Ecosyst Environ. 2006;116(1):4-14.
14. Gaskin JW, Steiner C, Harris K, Das KC, Bibens B. Effect of low temperature pyrolysis conditions on biochars for agricultural use. Trans. ASABE. 2008;51(6):2061-2069.
15. Glaser B, Lehmann J, Zech W. Ameliorating physical and chemical properties of highly weathered soils in the tropics with charcoal - a review. Biol Fert Soils. 2002;35(31):219-230.
16. Granatstein D, Kruger CE, Collins H, Galinato S, Garcia-Perez M, Yoder J. Use of biochar from the pyrolysis of waste organic material as a soil amendment.Center for sustaining agriculture and natural resourcesWashington state university. 2009.
17. Griffith B. Essential role of phosphorus in plants. 2006.
18. IBI- International Biochar Initiative. Standardized product definition and product testing guidelines for biochar that used in Soil. 2013.
19. Janeau JL, Gillard LC, Grellier S, Jouquet P, Le TPQ, Luu TNM, et al. Soil erosion, dissolved organic carbon and nutrient losses under different land use systems in a small catchment in northern Vietnam. Agric Water Manag.2014;146:314-323.
20. Kameyama K, Miyamoto T, Shiono T, Shinogi Y. Influence of sugarcane bagasse derived biochar application on nitrate leaching in calcaric dark red soil. J Environ Qual. 2012;41(4):1131-1137.
21. Kochian LV, Hoekenga OA, Piñeros MA. How do crop plants tolerate acid soils? Mechanisms of aluminum tolerance and phosphorous efficiency. Annu Rev Plant Biol. 2004;55:459-493.
22. Kwapinski W, Byrne CMP, Kryachko E, Wolfram P, Adley C, Leahy JJ, et al. Biochar from biomass and waste. Waste Biomass Valorization. 2010;1:177-189.
23. Lehmann J. Bio-energy in the black, Frontiers in Ecology and the Environment. 2007;5:381-387.
24. Lehmann J, Rondon M. Bio-char soil management on highly-weathered soils in the humid tropics. 2006.
25. Lehmann J, Joseph S. Biochar for environmental management: An introduction. In “Biochar for Environmental Management: Science and Technology. 2009.
26. Lehmann J, Gaunt J, Rondon M. Bio-char Sequestration in Terrestrial Ecosystems -A Review.2006;11(75):403-427.
27. Lehmann J, da Silva JP, Steiner C, Nehls T, ZechW, Glaser B. Nutrient availability and leaching in anarchaeological anthrosol and a ferralsol of the central amazon basin: Fertilizer, manure and charcoal amendments. Plant Soil. 2003;249(3):343-357.
28. Lehmann J, Kern DC, Glaser B,Woods WI. Amazonian dark earths: origin, properties, management. Kluwer academic publishers, the Netherlands.
29. Lehmann J, Rillig MC, Thies J, Masiello CA, Hockaday WC, Crowley D. Biochar effects on soil biota: A review. Soil biology and soilchemistry. 2011;43(9):1812-1836.
30. Lei H, Ren S, Julson J. The effects of reaction temperature and time and particle size of corn stover on microwave pyrolysis. Energ Fuel. 2009;23(6):3254-3261.
31. Liu R, Niu W, Zhang D. Biomass thermochemical conversion technology. Chemical Industry Press. 2005.
32. Major J, Rondon M, Molina D, Riha SJ, Lehmann J. Maize yield and nutrition during 4 years after biochar application to a Colombian Savanna oxisol. Plant and soil. 2010;333(1):117-128.
33. Marschner P. Mineral Nutrition of Higher Plants (3rd edn.) Acadamic Press Elsevier Ltd., United States of America. 2012.
34. McCauley A, Jones C, Jacobsen J. Soil pH and Organic Matter. Nutrient. 2009.
35. Miller R, Donhue R. Soil in our environment (7th ed.). Prentice-hall. 1997.
36. Mokolobate M, Haynes R. Comparative liming effect of four organic residues applied to an acid soil. Biol Fertil Soils.2002;35:79-85.
37. Noble AD, Zenneck I, Randall PJ. Leaf litter ash alkalinity and neutralization of soil acidity. Plant Soil.1996;179:293-302.
38. Novak JM, Busscher WJ, Laird DL, Ahmedna M, Watts DW, Niandou MAS. Impact of biochar amendment on fertility of a southeastern coastal plain soil.Soil science. 2009;174(2):105-112.
39. Novak JM, Busscher WJ, Watts DW, Amonette JE, Ippolito JA, Lima IM, et al. Impact on soil-moisture storage in an Ultisol and two Aridisols. Soil Science. 2012;177(5):310-320.
40. OliverMA, Gregory P. Soil, food security and human health: a review. Eur J Soil Sci. 2015;66(2):257-276.
41. Peng X,Ye LL,Wang CH, Zhou H, Sun B.Temperature and duration-dependent rice straw-derived biochar: Characteristics and its effects on soil properties of an ultisol in southern china. Soil Till Res. 2011;112(2):159-166.
42. Pietikäinen J, Kiikkilä O, Fritze H. Charcoal as a habitat for microbes and its effect on the microbial community of the underlying humus.Oikos. 2000;89(2):231-242.
43. Pradhan A, Chan C, Roul PK, Halbrendt J, Sipes B. Potential of conservation agriculture (CA) for climate change adaptation and food security under rainfed uplands of India: a transdisciplinary approach. Agric Syst. 2017;163:27-35.
44. Ribaut JM, Ragot M. Marker-assisted selection to improve drought adaptation in maize: the backcross approach, perspectives, limitations, and alternatives. J Exp Bot. 2007;58(2):351-360.
45. Rochelle-Newall E, Hulot F, Janeau JL, Merroune A. CDOM fluorescence as a proxy of DOC concentration in natural waters: a comparison of four contrasting tropical systems. Environ. Monit Assess. 2014;186(1):589-596.
46. Rodríguez L, Salazar P, Preston TR. Effect of biochar and biodigester effluent on growth of maize in acid soils. Livestock research for rural development. 2009.
47. Rondon MA, Lehmann J, Ramirez J,Hurtado M.Biological nitrogen fixation by common beans (Phaseolus vulgaris L.) increases with bio-char additions. Biology andfertility of soils. 2007;43(6):699-708.
48. Sanchez PA, Villachia JH, Bandy DE. Soil fertility dynamics after clearing tropical rainforestin Peru. Soil Sci Soc Am J. 1983;47(6):1171–1178.
49. The effect of biochar application on soil fertility and crop production on small vegetable farm in the north east US. SARE (Sustainable Agriculture Research and Education). 2013.
50. SinghB, Singh BP,Cowie AL.Characterization and evaluation of biochars for their application as a soil amendment. Aust J Soil Res. 2010;48(7):516-525.
51. Sohi SP, Krull E, Lopez-Capel E, Bol R. A review of biochar and its use and function in soil.Adv Agron.2010;105:47-82.
52. Sohi S, LoPez-capel E, Krull E,Bol R. Biochar's roles in soil and climate change: a review of research needs. Csiro land and water science. 2009.
53. Steiner C, Teixeira WG, Lehmann J, Nehls T, de Macedo JLV, Blum WEH,et al.Long term effects of manure, charcoal and mineral fertilization on crop production and fertility on a highly weathered Central Amazonian upland soil. Plant Soil. 2007;291(1):275-290.
54. Yamato M, Okimori Y, Wibowo IF, Anshori S, Ogawa M. Effects of the application of charred bark of Acacia mangium on the yield of maize, cowpea and peanut, and soil chemical properties in South Sumatra, Indonesia.Soil Science and Plant Nutrition. 2006;52(4):489-495.
55. Tilman D.Global environmental impacts of agricultural expansion: the need for sustainable and efficient practices. Proc Natl Acad Sci. 1999;96(11):5995-6000.
56. Tisdale S, Nelson W, Beaton J, Havlin J. Soil fertility and fertilizers (5th ed.). 2002.
57. Vaccari FP, Baronti S, Lugata E, Genesio L, Castaldi S, Fornasier F, et al. Biochar as a strategy to sequester carbon and increase yield in durum wheat. European J Agronomy. 2011;34(4):231-238.
58. Zwieten LV, Kimber S, Morris S, Chan K, Downie A, Rust J, et al. Effects of biochar from slow pyrolysis of papermill waste on agronomic performance and soil fertility. Plant Soil. 2010;327:235-246.
59. Zwieten LV, Singh B, Joseph S, Kimber S, Cowie A, Chan KY. Biochar and Emissions of Non-CO2 Greenhouse Gases from Soil. Biochar for Environmental Management.
60. Lehmann J, Joseph S. In Biochar for Environmental Management.Earthscan: London Sterling, VA, USA. 2009.
61. Wang J, Raman H, Zhang G, Mendham N, Zou M. Aluminum tolerance in barely (Horidiumvulgarie L.): Physiological mechanisms, genetics and screening methods. J Zhejiang Uni Scie. 2006;7(10): 769-787.
62. Wang N, Li JY, Xu RK. Use of various agricultural by-products to study the pH effects in anacid tea garden soil. Soil Use Manage. 2009;25(2):128-132.
63. Warnock DD, Lehmann J, Kuyper TW, Rillig MC. 2007. Mycorrhizal responses to biochar in soil-concepts and mechanisms. Plant Soil.2007;300:19-20.
64. Wong MTF, Swift RS. Amelioration of aluminium phytotoxicity with organic matter. Plant-Soil Interactions at Low pH: Principles and Management. 1995;pp:41-45.
65. DateRA, Grundon NJ, Rayment GE, Probert ME. Plant-soil interactions at low pH: principles and management.pp41-45.
66. WorrallF, Davies H, Bhogal A, Lilly A, Evans M, Turner K, et al. The flux of DOC from the UK–predicting the role of soils, land use and net watershed losses. J Hydrol. 2012;448:149-160.
67. Yaman S. Pyrolysis of biomass to produce fuels and chemical feed stocks.Energy conversion and management. 2004;45(5):651-671.
68. Yamato M, Okimori Y, Wibowo IF, Anshiori S, Ogawa M. Effects of the application of charred bark of Acacia mangium on the yield of maize, cowpea and peanut, and soil chemical properties in South Sumatra, Indonesia. Soil Science and Plant Nutrition. 2010;52(4):489-495.
69. YuXY, Ying GG, Kookana RS. Sorption and desorption behaviors of diuron in soils amended with charcoal. JAgric Food Chem. 2006;54(22):8545-8550.
70. Yuan JH, Xu RK, Wang N, Li JY. Amendment of acid soils with crop residues and biochars.Pedosphere.2011;21(3):302-308.
71. Yuan JH, Xu RK, Zhang H. The forms of alkalis in the biochar produced from crop residues at different temperatures. Bioresource Technol. 2011;102(3):3488-3497.
72. Yuan J, Xu RK. The amelioration effects of low temperature biochar generated from nine crop residues on an acidic Ultisol. Soil Use Manage. 2010;27(1):110-115.
73. Yuan J, Xu RK, Qian W, Wang RH. Comparison of the ameliorating effects on an acidic ultisol between four crop straws and their biochars. J Soil Sediment. 2011;11(5):741-750.
