Journal of Food Processing & Technology

Review on Methods and Applications of High-Performance Liquid Chromatography

Saira Baloch^1* and Yaojun Yang^{1,2 1}College of Life Science, Leshan Normal University, Sichuan, China
²Bamboo Diseases and Pests Control and Resources Development, Key Laboratory of Sichuan Province, Leshan Normal University, Sichuan, China
^*Correspondence: Saira Baloch, College of Life Science, Leshan Normal University, Sichuan, China, Email:

Received: 28-Dec-2020 Published: 05-Feb-2021, DOI: 10.35248/2157-7110.21.12.858

Introduction

High-Performance Liquid Chromatography (HPLC) involves separations in which the components to be separated are distributed between two immiscible phases. One of these phases is the mobile phase, and the other is a stationary phase [1,2]. There are three modes of chromatographic operation elution, frontal, and displacement. In elution, the sample components are placed or injected at the beginning of the chromatographic system. Suppose the system is composed of a column. In that case, the parts elute from the column is according to their distributions between the stationary and the mobile phases [3], the concentration distribution being most often symmetrical and Gaussian. Symmetrical peaks occur when the tiny sample size is used [4]. The highest efficiency occurs in this case, and consequently, at high speed, the liquid chromatography sample size is maintained tiny [5].

There are different types of interaction, which may occur during the separation, and these are referred to as modes of separation.

The mechanism of interactions categorized as follows:

• Adsorption

• Partition

• Bonded phase

• Ion exchange

• Size exclusion

• Affinity

Instrumentation

• Pump

• Injector

• Column

• Detector

• Recorder or data system

Pump

A pump forces the mobile phase through the column at a much higher velocity than gravity-flow columns. The pump is designed to maintain a constant flow rate and avoid pulsations even when the composition of the mobile phase changes [6].

Injectors

The injector is primarily used to inject the sample in liquid form. Two types of injectors are manual injector and automated injector [6].

Columns

he column is a significant component of HPLC, and its importance needs to be detailed. An HPLC column, which is silica-based packing’s, is the most widespread and commonly used system [7].

Detector

The HPLC detector monitors the eluent to produce an electronic signal proportional to each separated component's concentration as it leaves the column [8].

The most widely used detectors:

• Refractive Index Detector

• Fluorescence Detector

• Evaporative Light Scattering Detector

• Conductivity Detector

Data recording

When detection is complete, the detected signal is converted to an electrical signal that is then amplified by an amplifier and recorded as a chromatogram in data points. Then use the software as the display format according to the conversion requirements manually or using the software [9-11].

The development of the HPLC method mainly deals with two key stages:

• Mobile phase

• Stationary phase

Applications

• Analyzing complex mixtures, Purifying chemical compounds

• To survey food and drug products

• To identify confiscated narcotics

• To determine the amount of chemical compounds found in new drugs in Pharmaceutics [12-14].

• Pharmaceutical applications

• Environmental applications

• Forensics

• Clinical

• Food and flavor

Chromatography involves separations due to differences in the equilibrium distribution of sample components between two immiscible phases. One of these phases is moving are the mobile phase, and the other is a stationary phase. [15-18].

There are three modes of chromatographic operation elution, frontal, and displacement. In elution, the sample components are placed or injected at the beginning of the chromatographic system. If the system is composed of a column, the parts elute from the column according to their distributions between the stationary and the mobile phases, the concentration distribution being most often symmetrical and Gaussian [19-21].

Symmetrical peaks occur when the tiny sample size is used. The most excellent efficiency occurs in this case, and consequently, at high speed, the liquid chromatography sample size is maintained very small [22-24].

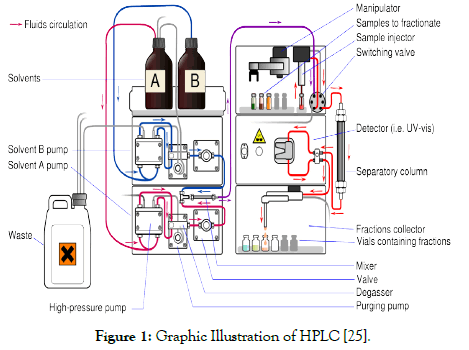

Figure 1: Graphic Illustration of HPLC [25].

Chromatography can be described as a mass exchange process involving adsorption. High-performance liquid chromatography relies on pumping through a pressurized fluid and an example of mixing through a portion of the adsorbent Segmentation of sample sections. The cross section's dynamic segment, the adsorbent, is usually a granular material consisting of solid particles (e.g., silica, polymers, etc.) ranging from 2 μm to 50 μm. In a part of this example, mixtures/mixtures are isolated from each other due to their unique degree of connection with the retainer particles. Pressurized fluids are usually mixtures of solvents (such as water, acetonitrile, and methanol) and are called “mobile phases.” Its structure and temperature play an essential role in the partition process by affecting the connection between the sample segment and the adsorbent [26,27]. High-performance liquid chromatography is considered conventional (low weight) liquid chromatography because operating pressures are fundamentally higher (50 bar to 350 bar).

In contrast, typical liquid chromatography periodically relies on the force of gravity to pass through portable segments [28,29]. Due to the small number of samples isolated in scientific high-performance liquid chromatography, the column section was measured in distances of 2.1 mm to 4.6 mm and lengths of 30 mm to 250 mm. Besides, HPLC fragments are made from smaller sorbent particles (2 μm to 50 μm in average molecular size). This gives HPLC high determination or resolution (ability to identify components) while isolating mixtures, which makes it an outstanding chromatographic method [30].

Conclusion

It is concluded that the HPLC is a multipurpose, repeatable qualitative and quantitative technique used for the evaluation of pharmaceutical and biological samples with accuracy, precision, and specificity.

Conflict of Interest

No Conflict of Interest.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

REFERENCES

1. Miller JM. Chromatography concepts and contrasts. 2nd ed. New Jersey. 2005:35-182
2. Dincer Z, Basan H, Goger NG. Quantitative determination of ambroxol in tablets by derivative UV spectrophotometric method and HPLC. J Pharm Biomed Anal. 2003;31(5):867-72.
3. Meiling Qi, Peng Wang, Ruihua Cong, Jianjun Yang. Simultaneous determination of roxithromycin and ambroxol hydrochloride in a new tablet formulation by liquid chromatography. J Pharm Biomed Anal. 2004;35(5):1287-91.
4. Morita MR, Berton D, Boldin R. Determination of levocetirizine in human plasma by liquid chromatography-electrospray tandem mass spectrometry: application to a bioequivalence study. J Chromatogra B.2008;862(1-2):132-9
5. Rafferty JL, Siepmann JI Schure MR. Molecular-level comparison of alkylsilane and polar-embedded reversed-phase liquid chromatography systems. Anal Chem. 2008;80(16):6214-221.
6. Euerby MR, Petersson P. Chromatographic classification and comparison of commercially available reversed-phase liquid chromatographic columns using principal component analysis. J Chromatogr. 2003;994(1-2):13-36.
7. Tyagi A, Nitin Sharma, Mittal K, Mashru R, Bhardwaj T, Malik J. HPTLC-densitometric and RP-HPLC method development and validation for determination of salbutamol sulphate, bromhexine hydrochloride and etofylline in tablet dosage forms. Pharmaceutica Analytica Acta. 2015;6(3):350
8. Dare M, Jain R, Pandey A. Method validation for stability indicating method of related substance in active pharmaceutical ingredients dabigatran etexilate mesylate by reverse phase chromatography. J Chromatogr A. 2015:6(2);263
9. Erk N. Rapid and sensitive HPLC method for the simultaneous determination of dorzolamide hydrochloride and timolol maleate in eye drops with diode-array and UV detection. Pharmazie. 2003 Jul;58(7):491-493.
10. Donald  DH, Shah M. Development and validation  of HPLC stability-indicating assays, in:   sens t.  carstensen, c.t.rhodes, editors  drug  stability-principle  &  practice. 3rd Edition.  New York. Marcel Dekker Inc.332;2008.
11. Lindholm  J. Development  and  Validation  of  HPLC  Method  for Analytical  and  Preparati ve  Purpose,  Acta  Universities  Upsaliensis Uppsala 2004;13-14.
12. Korodi T, Bukowski K and Lachmann B. Evaluation of a short stability-indicating HPLC method for diclofenac sodium gels. Pharmazie. 2012:67(12);980-983
13. Mulgund S, Phoujdar M, Londhe S, Mallade P, Kulkarni T, Deshpande A, et al. Stability indicating HPLC method for simultaneous determination of mephenesin and diclofenac diethylamine. Indian J Pharm Sci. 2009:71(1);35-45.
14. Vincent JB. Is chromium pharmacologically relevant?  J Trace Elem. Med Biol. 2014:28(4);397-405.
15. Wang L, Jiang G, Cai Y, He B, Wang Y, Shen D. Cloud point extraction coupled with HPLC-UV for the determination of phthalate esters in environmental water samples. J Environ Sci. 2007:19(7);874-78.
16. Wang LL, Wang JQ, Zheng ZX, Xiao P. Cloud point extraction combined with high-performance liquid chromatography for speciation of chromium (III) and chromium (VI) in environmental sediment samples. J Hazard Mater. 2010:177(1-3);114-18.
17. Wang P, Zhao G, Tian J, Su X. High-performance liquid chromatography inductively coupled plasma mass spectrometry based method for the determination of organic arsenic feed additives and speciation of anionic arsenics in animal feed. J Agric Food Chem. 2010:58(9);5263-5270.
18. Turker AR. Separation, Preconcentration and speciation of metal ions using solid phase extraction. Sep Purification Rev. 2012:41(3);169-206.
19. Veening H, Greenwood JM, Shanks WH, Willeford BRJ. Liquid chromatography of some arene tricarbonylchromium complexes. Chem Soc Chem Commun. 1969;22:1305-1306.
20. Vela NP, Heitkemper DT, Stewart KR. Arsenic extraction and speciation in carrots using accelerated solvent extraction, liquid chromatography and plasma mass spectrometry. Analyst. 2001;126(7):1011-1017.
21. Sheng ZY, Si HJ, Ming LX, Rong CJ, Yi CZ, Hui ZY. The study of analytical identification on main monomer compounds of spoiled grass carp by high performance liquid chromatography of quadrupole time of flight mass spectrometry. J Food Process Technol. 2016;7(7):1-3.
22. Amagai T, Bai H, Wang Q, Miyake Y, Noguchi M, Nakai S. Determination of nicotine exposure using passive sampler and high performance liquid chromatography. Pharm Anal Acta. 2015:6(7);1-4.
23. Lu Y. Development and optimization of a rp-hplc method to quantify midazolam in rat plasma after transdermal administration: validation and application in pharmacokinetic study. Pharm Anal Acta. 2015:6;329.
24. Chemistry dictionary. High Performance Liquid Chromatography. 2018.
25. Akan JC, Sodipo OA, Mohammed Z, Abdulrahman FI. Determination of organochlorine, organophosphorus and pyrethroid pesticide residues in water and sediment samples by high performance liquid chromatography (HPLC) with UV/visible detector. J Anal Bioanal Tech. 2014;5:226
26. Parbhunath OL, Rautenbach F, Davison G, Marnewick JL. Optimization and validation of a reverse-phase high performance liquid chromatography assay with ultra-violet detection for measuring total l-ascorbic acid in food and beverage products. J Anal Bioanal Tech. 2014:5;201
27. Yates BJ, Temsamani KR, Ceylan O, Oztemiz S, Gbatu TP, LaRue RA. Electrochemical control of solid phase micro-extraction: conducting polymer coated film material applicable for preconcentration/analysis of neutral species. Talanta. 2002:58;739-745.
28. Zhou Q, Xing A, Zhao K. Simultaneous Determination of nickel, cobalt and mercury ions in water samples by solid phase extraction using multiwalled carbon Nanotubes as adsorbent after chelating with sodium diethyldithiocarbamate prior to high performance liquid chromatography. J Chromatogr A. 2014:1360;76-81.
29. Szterk A, et al. Comparison of various detection systems coupled to high performance liquid chromatography for determination of tocopherols in meat. The influence and comparison of the most popular sample preparation method. J Anal Bioanal Tech. 2013;S2:005.
30. Lories IB, et al. High performance liquid chromatography, TLC densitometry, first-derivative and first-derivative ratio spectrophotometry for de-termination of rivaroxaban and its alkaline degradates in bulk powder and its tablets. J Chromatograph Separat Techniq. 2013;4:202.
