Facile Synthesis and Characterization of rGO Decorated NiFe₂O₄ Nanocomposite Obtained from Waste Ni-Cd/Ni-MH Batteries

Mylarappa M^1*, Venkata Lakshmi V² and Kantharaju S^{1 1}Department of Chemistry, Sri Jagadguru Renukacharya College of Science, Arts and Commerce, Bangaluru-560009, Karnataka, India
²Research Centre, Department of Chemistry, AMC Engineering College, Bengaluru-560083, Karnataka, India
^*Correspondence: Mylarappa M, Department of Chemistry, Sri Jagadguru Renukacharya College of Science, Arts and Commerce, Bangaluru-560009, Karnataka, India, Tel: +91-9742413751, Email:

Received: 25-Jul-2020 Published: 03-Sep-2020, DOI: 10.35248/2252-5211.20.10.385

Introduction

Nickel ferrite (NiFe₂O₄) nanocrystalline is one of the most vital ferrites among alternative ferrites from the spent battery because of most favorable uses in Ferro fluids, gas sensors, storage devices, catalysts and microwave devices [1-7]. Recently, extensive consideration has been paid on NiFe₂O₄ with variable size, morphology and shape as well analogous applications were studied [8,9]. In the synthesis of NiFe₂O₄, both chemical and physical methods have been established with different surface morphology. Compared to physical methods, the chemical methods have benefits such as large scale production, low cost and reaction taking place at very low temperature. The nano structured NiFe₂O₄ has been prepared by different process like sonochemical, polymeric precursor, mechanical alloying, hydrothermal, and co-precipitation methods [10-14].

The literature shows that a few works on the surface morphology controlled preparation of the NiFe₂O₄ nano particles. Newly, fabricated NiFe₂O₄ nano sheets using chemical method by Gunjakar et al. [15]. Chu et al. synthesized nano cubes and nanorods of NiFe₂O₄ through hydrothermal process [16]. Zhang et al. via polyethylene glycol method prepared NiFe₂O₄ nano particles [17], the hollow sphere NiFe₂O₄ nano rods and their magnetic properties was studied by Chen L et al. [18]. Also several studies have concentrated on the synthesis of spinel nano ferrites because of their quantum confinement effects, both chemical and physical properties and their surface effects.

The nano NiFe₂O₄ have AB₂O₄ structure. In this structure, O specifies the oxygen anion site and A and B shows tetrahedral and octahedral cation sites [19]. The nickel ions (Ni⁺²) are located in B sites and iron ions (Fe³⁺) are equally dispersed between A and B sites. It is well known that combined metal oxide nano particles are seemly very attractive to making the electrode materials due to their controlling morphology and size, high surface energy, attractive structural, magnetic and electronic activities, which improve their catalytic performance [20-22].

In the synthesis of nano NiFe₂O₄, reduced graphene oxide (rGO) was selected as solid subsidiary material to keep the nano NiFe₂O₄ from aggregation. The rGO based nano composite materials will have increased electrochemical performance like reversibility, capacitive action and cycling stability. The rGO doped nano composite have been widely used as anodes for rechargeable batteries and some recent studies shows the production of rGO based metaloxide anode materials have equitably good development [23,24]. For example, MgFe₂O₄/rGO composites was displayed excellent cycling stability and rate capability synthesized by Zhang et al. and SnO₂/rGO nano hybrid exhibited that electrochemical Na-storage activity enhanced due to amalgamation of reduced graphene oxide [25].

The synthesis and structural aspects of NiFe₂O₄/rGO nano composite obtained from waste Ni-Cd/Ni-MH batteries by hydrothermal process are not yet described. The current study revealed the facile synthesis of nickel ferrite from waste batteries and the obtained NiFe₂O₄ was adsorbed on the surface of reduced graphene oxide (rGO) via hydrothermal method.

Experimental Methods

Materials and Methods

The list of chemicals, specifications and suppliers names were employed in this work as indicated in Table 1. The hydrometallurgical method is adapted for the synthesis and structural aspects of rGO doped nickel ferrite nano composite from spent Ni-Cd/Ni-MH batteries.

Table 1: list of chemicals, specifications and suppliers.

Synthesis of NiFe₂O₄ from Waste Batteries

The leached battery powder which obtained from waste Ni-Cd/ Ni-MH batteries taken in a two necked round bottom flask about 1 g and add 100 ml of 3 M sulphuric acid (H₂SO₄) to dissolve Ni and Cd ions in the powder. When the cations were dissolve with acid, add stoichiometric amount of Mohr’s salt as iron source to solution with constant stirring. The obtained mixture was subjected to analyze the PH of the solution by using sodium hydroxide (NaOH) solution. The reaction mixture was performed at constant agitation speed of 250 rpm and proceeded at 100°C for 60 min, a brown colored precipitate was obtained. The obtained precipitate was dried at 200°C for 24 hours.

Synthesis of NiFe₂O₄/rGO Nano-Composite

The reduced graphene was added about 1 g in a 250 ml beaker containing 100 ml of distilled water and 1 g of synthesized nano NiFe₂O₄ obtained from above taken in another beaker separately using ultra-sonication for better dispersion for 30 min. The well dispersed NiFe₂O₄ nano particles was decanted into the solution containing rGO in water with constant stirring. The entire mixture was maintained constant speed at 100°C for one hour. The obtained NiFe₂O₄/rGO nano composite was filtered, dried and washed. The precipitate was kept in oven for 24 hours at 100°C. The Flow chart and illustration of synthesis of NiFe₂O₄/rGO Nano composite as shown below Figure 1.

Figure 1: Flow chart and illustration of synthesis of NiFe₂O₄/rGO Nano composite.

Results and Discussions

X-Ray Diffraction Studies

X-Ray diffraction (XRD) spectra of NiFe₂O₄ and NiFe₂O₄/rGO nano composite are shown in Figure 2. In Figure 2a, the measured average crystallite size of NiFe₂O₄ nanoparticle was about 9 nm and the graphic representation of a NiFe₂O₄ unit cell is presented as an introduced image in Figure 2a. The diffraction peaks of NiFe₂O₄ which indicated the formation of crystalline phase of NiFe₂O₄ and broadening of the peaks were confirmed the nano crystalline nature of the powder. In Figure2b, the particle size of NiFe₂O₄ nano particle and NiFe₂O₄/rGO nanocomposites was found to be 9 nm and 13.4 nm respectively by using the Scherrer’s equation. In NiFe₂O₄/rGO nanocomposites the peak intensity (220) was disappear completely recommending that reducing crystal size of NiFe₂O₄, which reveals the growth of NiFe₂O₄ particles were essentially restricted after the fusing of rGO [26]. The extra peaks at about 27°, 29° and 46° are observed in Figure 2a were due to the contamination of the sample or that my occur during the leaching process of the waste batteries.

Figure 2: XRD spectra of a) NiFe₂O₄ and b) NiFe₂O₄/rGO nano composite.

We observed that, the peak intensities of NiFe₂O₄/rGO nanocomposites compared to NiFe₂O₄ decreases with increase in average particle size and doped rGO will decreased intensity peak, which shows the growth of NiFe₂O₄ was controlled after the doping of rGO dispersion. The Williamson and Hall method and Scherrer’s equation was employed to calculate the particle sizes of NiFe₂O₄ and NiFe₂O₄/rGO nano composite. According to Williamson and Hall, when lattice micro stain and domain were all together concurrently working their mutual effects provides the final line broadening of full width half maximum (FWHM) in which the sum of lattice distortion and particle grain size. The following equation gives a straight line between β cosθ and 4sinθ where ε is associated strain with nano composite.

(1)

From the above equation, the average crystalline size (D) is measured by the intercept and strain (ε) was calculated by the slope of the line obtained from the graph. The results obtained from the equation were analogous to the particle size calculated from the Scherrer’s equation. Particle size and other structural parameters of NiFe₂O₄ and NiFe₂O₄/rGO as indicated in Table 2. The density and stacking fault were calculated by the following equations.

Table 2: Particle size and other structural parameters of NiFe₂O₄ and NiFe₂O₄/rGO.

Field Emission Scanning Electron Microscopy

The field emission scanning electron microscopy (FESEM) was used to analyze the surface morphology images of NiFe₂O₄ and NiFe₂O₄/ rGO nano composite as shown in the Figures 3a-3d. The surface morphology of particles are composed of various quadrangular shape with 1μm and 2 μm as indicated in Figures 3a and 3b. In Figures 3c and 3d, clearly shows that when reduced graphene was dispersed in the ferrite, The NiFe₂O₄ can be spread on the surface of nano ferrite forming NiFe₂O₄/rGO nano composite and the morphology of the particles are well distributed and some have little aggloromation as shown in the Figures 3c and 3d.

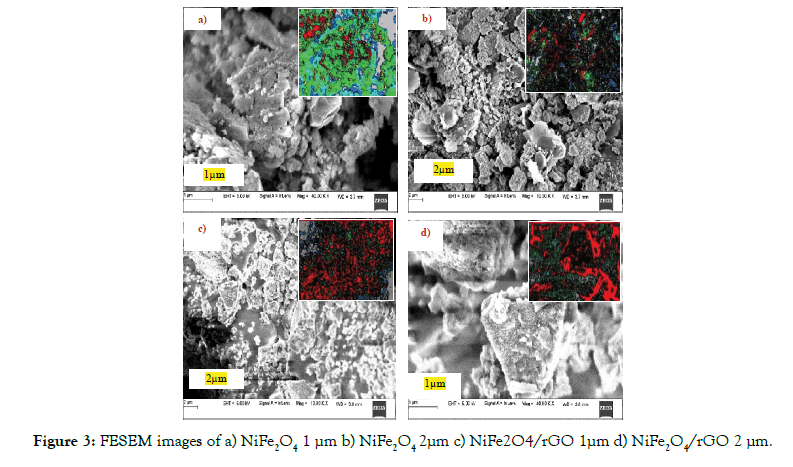

Figure 3: FESEM images of a) NiFe₂O₄ 1 μm b) NiFe₂O₄ 2μm c) NiFe₂O₄/rGO 1μm d) NiFe₂O₄/rGO 2 μm.

EDAX Analysis

From elemental analysis data, observed that C, Ni, Fe and O peaks, which confirms the purity of our synthesized sample. The chemical composition of NiFe₂O₄ and rGO/NiFe₂O₄ nano composite was indicated in Table 2. The qualitative analysis of C, Ni, Fe and O in the NiFe₂O₄ and NiFe₂O₄/rGO nanocomposites are determined by using EDX analysis as shown in Figures 4a and 4b. The elemental composition of NiFe₂O₄ is composed of 20.45% oxygen, 7.70% carbon, 2.27% Nickel and 21.69% iron respectively. Similarly in Figure 4b, the chemical composition of NiFe₂O₄/rGO is consist of 26.0 % oxygen, 10.0% carbon, 2.59% Nickel and 21.69% iron respectively.

Figure 4: EDAX spectrum of a) NiFe₂O₄ b) NiFe₂O₄/rGO.

Fourier Transforms Infra-Red Spectrometer Studies

The functional groups attached for NiFe₂O₄ and NiFe₂O₄/rGO was performed by using Fourier transforms infra-red spectrometer (FT-IR). FTIR spectrum of NiFe₂O₄ NiFe₂O₄/rGO nano composite as shown in Figures 5a and 5b respectively.

Figure 5: FTIR spectrum of a) NiFe₂O₄ b) NiFe₂O₄/rGO nano composite.

In Figure 5a, the absorption frequency at 3290.2 cm^-1 and 2169.2 cm^-1 could be attributed to the symmetric vibration of -OH groups. The bands with peaks detected at 1087 cm^-1 was assigned to O-H bending vibration. The absorption peaks near 162°Cm^-1 and 608 cm^-1 appeared in NiFe₂O₄ which are attributed to the skeletal vibration of metal-oxygen bonds of the NiFe₂O₄ particles. The vibration bands of Fe and Ni are found in the range of 1000–120°Cm^-1 is the region of the vibrational bands of Fe₂O₃ in octahedral site and Ni–O in tetrahedral sites present in the samples [27-29]. In Figure 5b, the bands at about 21076 cm^-1 and 1991.6 cm^-1 are represented the stretching vibration of C=O and The bending vibration of H-O-H was assigned at 2107.6 cm^-1. The C-O bending vibration occur at absorbed frequency 108 7.1 cm^-1 and peak 1622 cm^-1 demonstrate the C=C stretching vibration of reduced graphene oxide sheets. The M-O bond absorbed at 579.9 cm^-1 [30-32] and the rGO absorption bands resemble to the oxygencontaining functional groups are vanished in rGO doped nickel ferrite nano composite and the oxygen-containing functional groups almost vanished in NiFe₂O₄/rGO nano composite shows that oxygen-containing functional groups were almost removed in rGO dispersion reaction [33-35].

Thermogravimetry Analysis

The TGA of NiFe₂O₄ and NiFe₂O₄/rGO nano composite were studied by TGA and the results were shown in Figures 6a and 6b.

Figure 6: TGA of a) NiFe₂O₄ b) NiFe₂O₄/rGO nano composite.

In Figure 6a, The NiFe₂O₄ and NiFe₂O₄/rGO nano particles were The NiFe₂O₄ and NiFe₂O₄/rGO nano particles were prepared from spent battery as appeared in Figures 6a and 6b. In Figure 6a uncovers the NiFe₂O₄ nano particles has three separate warm disintegration steps. The main weight reduction stage in the temperature scope of 25°C-100°C, which was joined by an extremely little endothermic pinnacle is because of the loss of water particles in the NiFe₂O₄. The second region begins ~ 145°C and ends at 324°C with a weight loss of 80% which might be due to the initial breakdown of reactants. Almost no weight loss over ~708°C indicates the completion of thermal decomposition and formation of spinel ferrite [36].

In Figure 6b the rGO decorated nickel ferrite nano composite indicates three weight reduction forms. The weight loss below 100°C was removal of moisture in the sample. The weight reduction take place from 100 to 326°C, which caused by the destruction of oxygenated functional groups. Next a massive weight reduction happens between 326°C and 586°C. It tends to be dispersed to the ignition and disintegration of carbon molecule. The final exothermic phase was around 586°C and 796°C can be recognized for the rGO decorated NiFe₂O₄ composite and the weight loss occurred between 586°C and 796°C was indicating the conversion of reactants into the final products [37].

Conclusion

From this studies average particle sizes of NiFe₂O₄ and NiFe₂O₄/ rGO composites of particle average size ranging from 9 to 13.4 nm were synthesized successfully from waste battery collection through hydrothermal method. The surface morphology of NiFe₂O₄ and NiFe₂O₄/rGO having quadrangular shape with NiFe₂O₄ nano particles are well covered on the rGO surface. The elements C, O, Ni and Fe were the main chemical constituents present in the sample which was confirmed by EDX analysis. From infrared analysis, the high frequency band at 579 and 608 cm^-1 was corresponds to M-O bonds in NiFe₂O₄ and NiFe₂O₄/rGO nano composite. From Thermal studies, the sample NiFe₂O₄ nano particles can withstand the temperature up to 706°C and NiFe₂O₄/rGO nano composite up to 796.6°C respectively.
